Overflow box

Hi
i want to build an overflow box like the one in the pic. Do anyone here use them or have a nice diy on them or any ideas or suggestions?



No one?????????



@llewellynkearney

You only posted this 3 hours ago. Perhaps a bit of patience? During office hours the forum can be slow, and even slower during school hours.

This is a very random and different question being asked, there may only be one or two people who can assist.



Thanks for the reply and sorry. Guess i'm a lil bored



heehee. Then google DIY Overflow box... might get answers and videos there?



I'm also keen to see your responses, as I've just had my tank moved and want to change my filtration strategy.



I was checking out this guy's system that I found today: Melevsreef.com | Acrylic Sumps & Refugiums

Still haven't decided on my final approach yet though. More research and forum threads to read still



Ja i just got a 4ft 240l tank with a 3ft 100l sump so was thinking of an overflow box like that. Been reading up on it alot lately. Just wanted to know if any of our members got/use them. I want to build my own one cause they are too expensive. Nice link
thanks for the reply



I'm sure somebody must have tried it - we'll patiently wait for them to reply (with pictures)



i got one like similar to that mines a reef octopus. work like a charm



I dont have a suggestion but I thought the post were funny and you deserved a good luck!!!



Have a look here, not a overflow box but a pvc overflow, same idea just a lot cheaper, myne cost me about R150 whilst a box like that is around R1000 if you buy it...

400l Tank

diy overflow and surface agitations

also id suggest you search DIY Overflow



To build one like that you will need to be able to heat-form acrylic (Perspex). Actually quite involvled unless you have a contact with the necessary equipment. I assume in your case there is a reason you don't want to just drill the tank?



HI GUYS
THANKS FOR ALL THE REPLIES

@doug - HOW MUCH DID YOU PAY FOR IT?

@oupoot - LOVED YOUR THREAD BUT I'M NOT KEEN ON ALL THE PLUMBING IN THE TANK

@Aqii - I DON'T HAVE ANY OBJECTIONS ON DRILLING MY TANK. I'M JUST NOT KEEN ON IT

DOES ANYONE KNOW HOW TO HEAT AND BEND PERSPEX. I GOT PLANS ON HOW TO DIY AN OVERFLOW BOX, SO GONNA TRY IT BUT WANT TO KNOW IF ANY OF YOU EVER TRIED IT, CAUSE PERSPEX ARE A BIT PRICEY SO I WANT TO DO IT RIGHT THE FIRST TIME.(HOPE SO) I GOOGLED IT AND GOT ALOT OF ANSWERS BUT WOULD LIKE TO HEAR FROM SOMEONE WITH EXPERIENCE.
TNANKS



bought mine secondhand R500. one of our sponsors has got i think dorry. as far as i can recall R1000 new thats reef octopus
doug



Yeah its a grand



hi there guys. so i decided to go with the diy pvc overflow as my overflow box kept on breaking the siphon. so now i got a new problem. there is not enough flow back to the sump through the overflow. cause within 5 min my tank starts flooding.
so please can anybody help. @a3aan i know yours work perfectly so your input will be much appreciated.

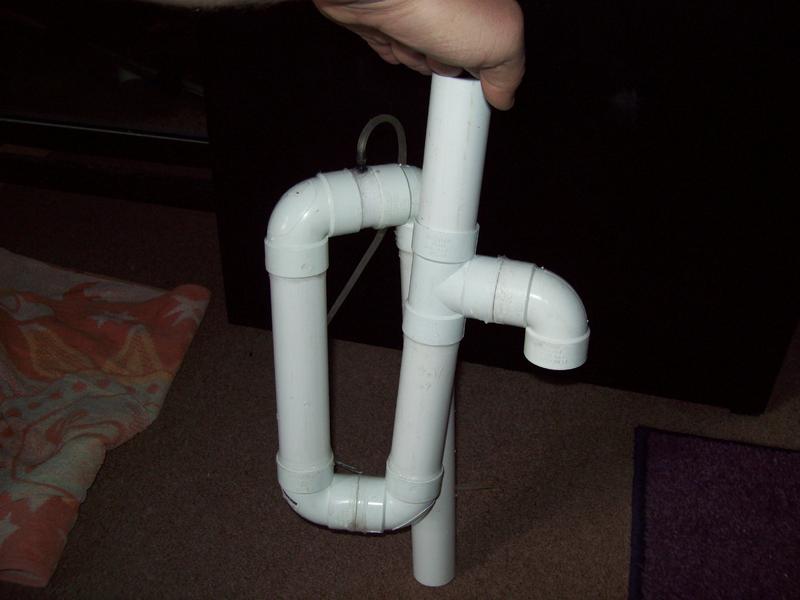

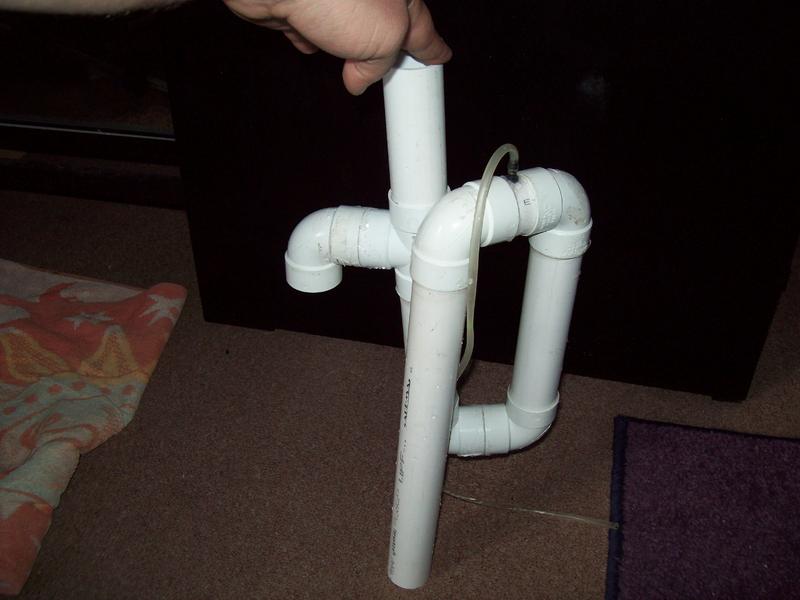

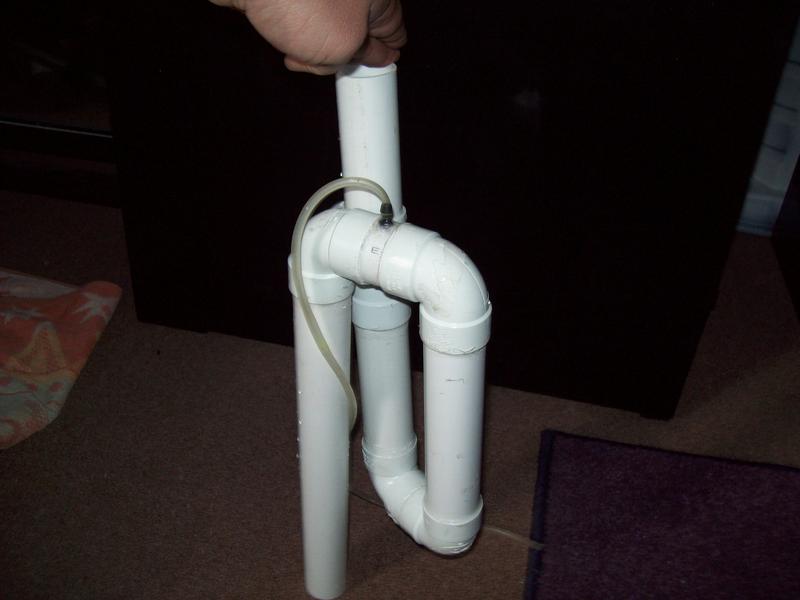

the overflow is built from 40mm pvc piping and according to me it should be more than enough.

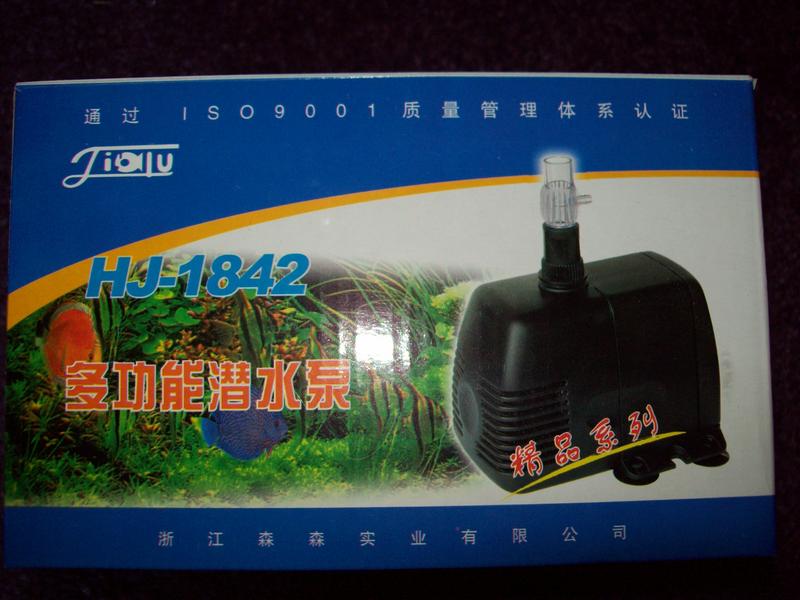

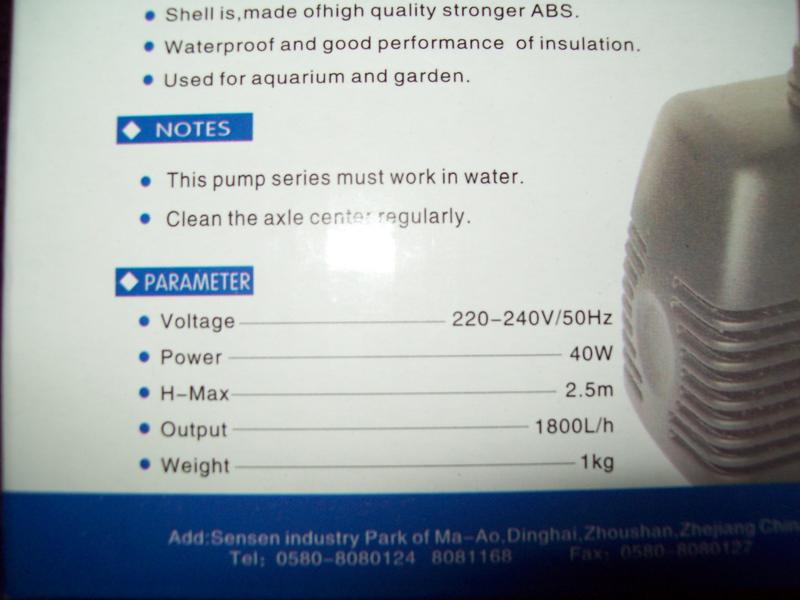

my return pump specs are 1800 lph but there is no spec on what head.
here are a few pics. so please feel free to comment.



Hey looks good. The overflow is a bottom pickup and uses horizontal flow will work 100 but they flow much less than a surface pickup that uses vertical flow. (Check those charts in the link you have to. If you can't find it I will post it again.)

So now you can solve this in 2 ways. You can either put a T just after your return pump with a ball valve and direct this flow back to the first chamber of your sump. So then you can open and close the ball valve to get the return pump not to out perform your overflow and without putting strain on the pump. Or you can use the surface pickup overflow in your 40mm size. Either way it will solve your prob.

But before anything make sure you don't have an air lock in the u bend that goes over the tank edge. I had that prob with mine to. ( I blocked off the exit into the sump with a end cap and sucked on the stand pipe. Let it fill al the way and then open the outlet in the sump. The rush of water pulls the air lock out. )

Hope you come right. Let me know. Will come give a hand...



thx alot for your reply will sit and think what i'm gonna do. will let you know the results



hi @a3aan
thx for your help changed the overflow to vertical and bam it worked like a bomb. i think we should name you as tasa's diy overflow guru/engineer/specialist.
thx again now i can sleep tonight.lol
