Drilling tanks

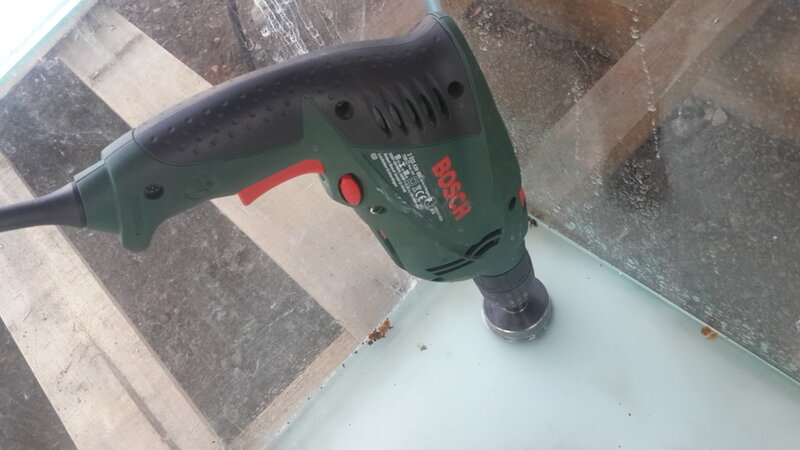

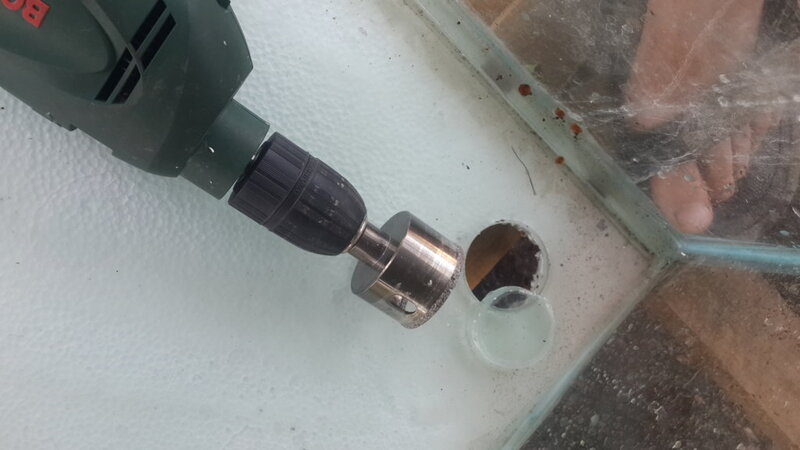

Drilled two tanks today; 51mm. I will pick up some glass pieces tomorrow to build the overflows. The trick is to be patient and use water.



nice .. don't have to do a box - could just do a bulkhead and a standing pipe ... just be sure that you never snap the base by leveraging the pipe.

Later Ferdei



@f-fish l will just do as before with one sheet of glass at 45 degrees. The bulkhead pipe will be too risky when working on the tanks or catching fishes at a later date



100% - the 45 degree is actually rather clever - does not take up all that space and gives you nice edge to plant / scape against.

Hmm thinking about it, one could probably do an algae scrubber on the inside of that bit of glass.

Later Ferdie



nice
always better to have glass when drilling the bottom.
did you use one of those cheap drill bits from builders warehouse. what thickness was the tank you drilled



Cheapie, well at Chamberlain the bit cost R800! It was 10 mm glass

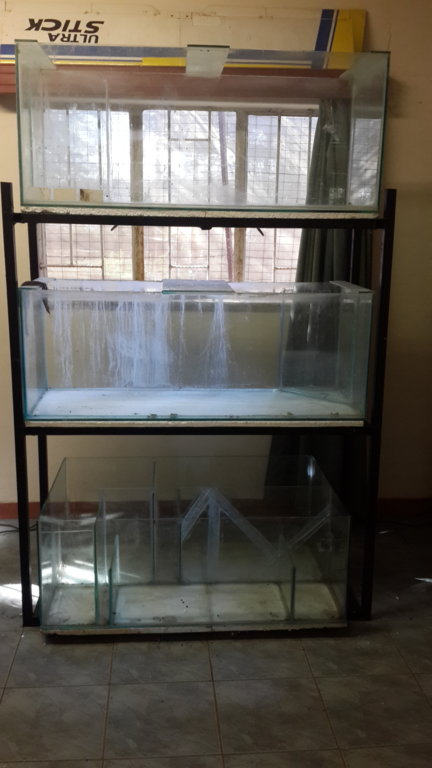

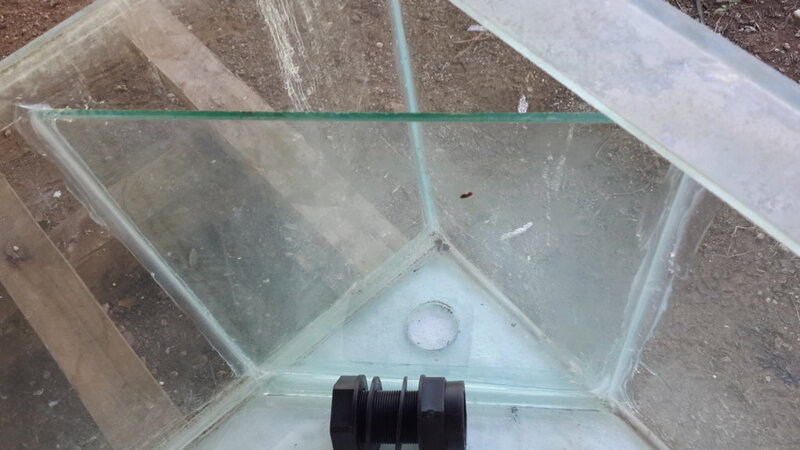

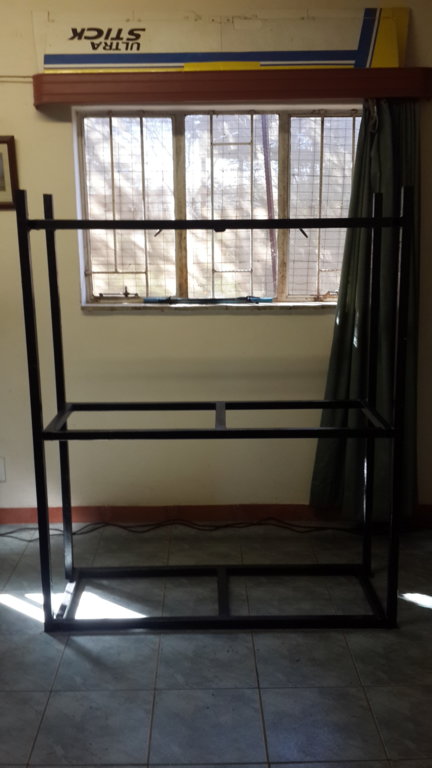

Overflows in, stand up and tanks installed. Probably enough for today!



@TrevorR looking good

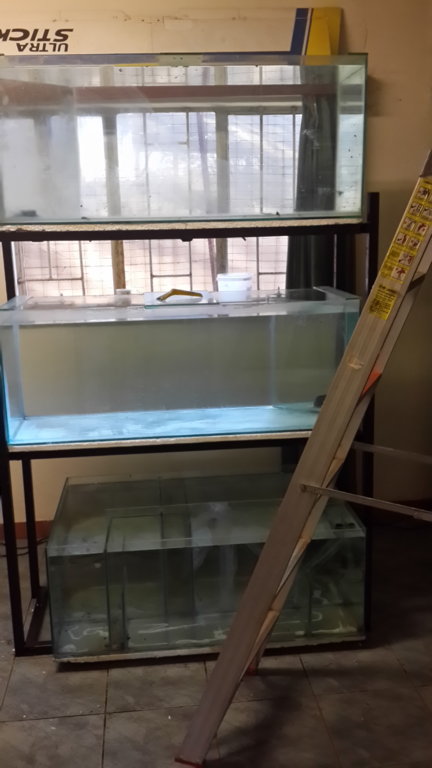

Leak test; successful!

Still much more to do...



That is sooooo cooool ... really like the progress being made.

later Ferdie



@f-fish Thanks! Slow steps, soon I'll have some extra space to play with! Making media bags for the sump is the next big job; lots of stitching... I'll keep you posted!



looking good
are you going to do a tee manifold in overflow box?



No, top tank drains to middle tank and then down to the sump for return in the last chamber. Very simple, but very effective!



yes i see this sorry what i ment to ask are you going to but a tee manifold in each overflow to try keep it quite, if you just have upright pipe it will make a lot of noise as air can not escape.
something along these lines: https://www.google.co.za/search?q=s...AUICigB&biw=1280&bih=933#imgrc=q6xA3Y9EUZ40qM:



Cool, thanks, I'll look into it! I usually insert a length of smaller pipe into it which quiets it down.



Remember I have built overflows, I am not using the bulk head system. My other similar systems aren't too noisy. Just my jumbo tank was very noisy, but managed to quiet it down with a thinner length of pipe inserted into the down pipe.
