Aquaponics system

Discussion in 'General Discussions' started by Rickus, Sep 20, 2012.

  1. Rickus

    Rickus

    Joined:
    Aug 10, 2010
    Messages:
    645
    Likes Received:
    10
    Location:
    Bethlehem
    Anyone busy with one of these setups??? I just started my own Veg Garden and want to learn more about these aquaponics systems.

  2. Guest




  3. Willem

    Willem High fin Pangasius

    Joined:
    Jun 10, 2011
    Messages:
    755
    Likes Received:
    15
    Location:
    Pretoria
    Last edited by a moderator: Oct 2, 2016
  4. OP
    Rickus

    Rickus

    Joined:
    Aug 10, 2010
    Messages:
    645
    Likes Received:
    10
    Location:
    Bethlehem
    Im going to try it. What are you going to use as a medium to grow the plants. Does the plants need direct sunlight, I think so. But wouldn't there be a algae problem with the Fish tank in the sun?

  5. halo123.

    halo123.

    Joined:
    Mar 29, 2012
    Messages:
    78
    Likes Received:
    1
    Location:
    durban
    Hi rickus , you shouldent have algae , but in the first setup you may .
    the plants would use the nutrients in the water and then there is no nutrients for the algea.
    i have a really basic setup that i have going atm , growing mint in there which is only starting to take now.
    colder weather got to the other plants. put the mint in abt 2 weeks ago and i can see its starting to take off.

    mysetup is pretty basic, atm , planning a bigger setup later on ,

    old cast iron bath as the tank, old cooler box with grave and a bit of filter floss in it,

  6. Willem

    Willem High fin Pangasius

    Joined:
    Jun 10, 2011
    Messages:
    755
    Likes Received:
    15
    Location:
    Pretoria
    @Rickus if you go thru that link I put on somewhere they say atleast 4 hous of sun per day what are your basic setup going to be like are you going to use your normal glass tank for the fish and what are you using for the plants. I am using my pool setup for the fish and hafe two fibreglass bathes for the plants, the grow medium wil be about 10mm pebles with normal 4mm gravel you buy at the LFS. That clay the use is a bit expensive for me .

    Last edited by a moderator: Oct 2, 2016
  7. oupoot

    oupoot

    Joined:
    Aug 22, 2012
    Messages:
    1,118
    Likes Received:
    340
    Location:
    Randburg
    @Rickus I got a few DVDs and stuff about it if your interested, PM me....

    Last edited by a moderator: Oct 2, 2016
  8. OP
    Rickus

    Rickus

    Joined:
    Aug 10, 2010
    Messages:
    645
    Likes Received:
    10
    Location:
    Bethlehem
    Im busy planning my setup. Stil deciding what Im going to use for the tank and nursery tank and the plumbing is still a mistery. Please share some pics.

    Gestuur van my S III "slimfoon" ,maar hy kan nie spel nie.

  9. Willem

    Willem High fin Pangasius

    Joined:
    Jun 10, 2011
    Messages:
    755
    Likes Received:
    15
    Location:
    Pretoria
    @Rickus Pm me your e-mail address and I'll send you something to read.

    Last edited: Sep 21, 2012
  10. Willem

    Willem High fin Pangasius

    Joined:
    Jun 10, 2011
    Messages:
    755
    Likes Received:
    15
    Location:
    Pretoria
    @Rickus the reading material I have send you was it of any help in your quest ??

    Last edited by a moderator: Oct 2, 2016
  11. OP
    Rickus

    Rickus

    Joined:
    Aug 10, 2010
    Messages:
    645
    Likes Received:
    10
    Location:
    Bethlehem
    Yes, thanks. very helpfull. answered all my questions. Now the get all the equipment and planning the setup.

    Last edited by a moderator: Oct 2, 2016
  12. KennyG

    KennyG

    Joined:
    Jul 23, 2012
    Messages:
    762
    Likes Received:
    6
    Location:
    Centurion
    i must post some pics of my greenhouse setup, my tomatoes look like trees haha

  13. OP
    Rickus

    Rickus

    Joined:
    Aug 10, 2010
    Messages:
    645
    Likes Received:
    10
    Location:
    Bethlehem
    Is it a aquaponics system in a green house? Please post some pics.

    Gestuur van my S III "slimfoon" ,maar hy kan nie spel nie.

  14. KennyG

    KennyG

    Joined:
    Jul 23, 2012
    Messages:
    762
    Likes Received:
    6
    Location:
    Centurion
    yes it is a small greenhouse system 2mx1m , ill take some pics for u 2mrw when the suns out. i did my science expo on it so i have a fair understanding on it , if u have questions pertaining to it and tons and tons of research and reading material if u want

  15. KennyG

    KennyG

    Joined:
    Jul 23, 2012
    Messages:
    762
    Likes Received:
    6
    Location:
    Centurion

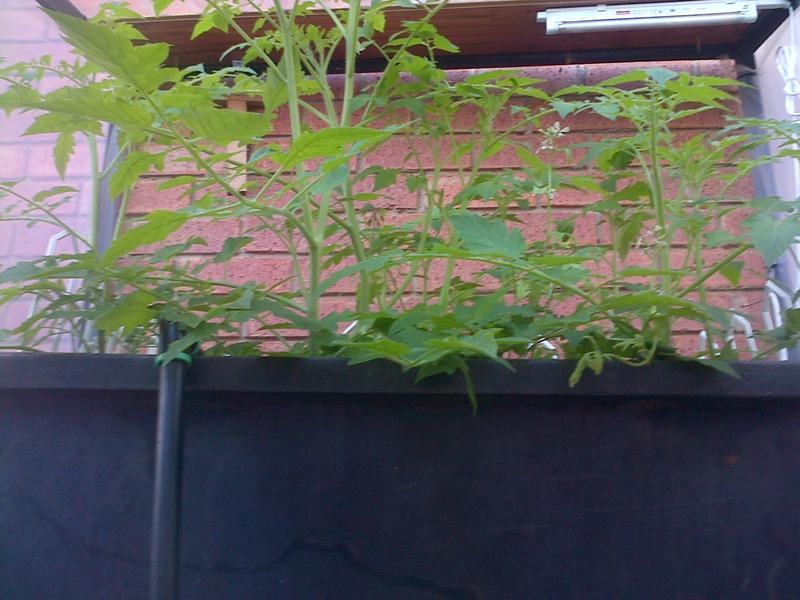

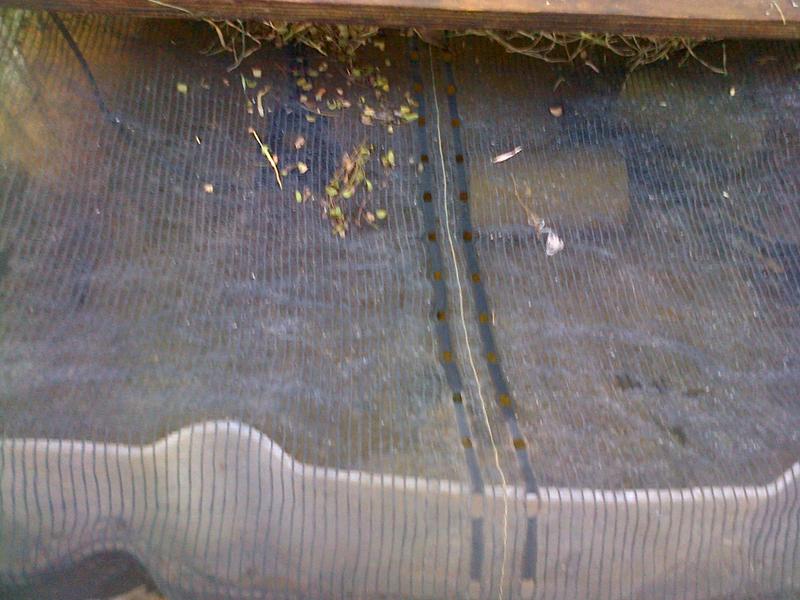

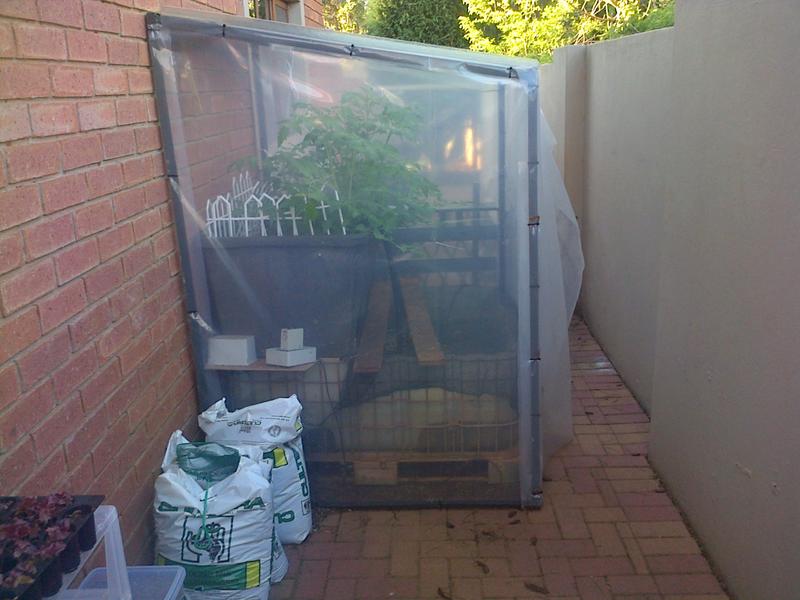

    Clayville-20120925-00068.jpgClayville-20120925-00069.jpgClayville-20120925-00070.jpg@Rickus ​hope this helps :)




  16. friedlandnam

    friedlandnam

    Joined:
    Oct 17, 2011
    Messages:
    106
    Likes Received:
    5
    Location:
    Stellenbosch
    @KennyG,

    Would you be willing to do a short write-up on the system. My retired parents are living on a small plot with water being a bit scarce, as well as having a very bad climate. Freezing winters and boiling summers. This might be a option for them to do some of the more difficult veg.

    Nice setup btw.

    Last edited by a moderator: Oct 2, 2016
  17. OP
    Rickus

    Rickus

    Joined:
    Aug 10, 2010
    Messages:
    645
    Likes Received:
    10
    Location:
    Bethlehem
    Please give us some specs on your system.

    Cool system. BTW

  18. KennyG

    KennyG

    Joined:
    Jul 23, 2012
    Messages:
    762
    Likes Received:
    6
    Location:
    Centurion
    ok , some specs:
    the tanks i recycled from a guy who does it as his bussiness. i bought steel to make a frame from a hardware store , plastic sheeting from a company in lyttleton and also the clear roof from a hardware shop. the pump is ur avg pond pump capable of 300L p/h doesnt need a filter because ur grow bed acts as that. the bottom tank is a volume of 300L 2mWX2mLx bout 40-60cm in height. the growbed tank is about 1mLX2mWXa gold halfmeter more in height. for that ive used a mixture of gravel and hydroballs , that way the hydroball growth media doesnt float around and gravel is cheaper and does the same job. once specialised thing i have in my system is the fact it runs on a timer system which leaves the pump doing a flood and drain cycle of my growth bed. but there is a non electrical method of doing the draining and filling of the grow bed. o and of course i have 2 simple aquarium heaters in my tank to keep the fishes metabolism up (theyre tropical) and the greenhouse temp up. plants i just grow seedlings in trays until theyre ready and i feed my fish pellets , they prefer it over veg matter. i think that will cover it im not sure if there is anything else about the system that u want to know , but feel free to ask :) need to raise awareness about this amazing way of organic plant growing with fish :)

  19. Hawk

    Hawk Clown Fish :-)

    Joined:
    May 25, 2012
    Messages:
    5,147
    Likes Received:
    80
    Location:
    Cape Town
    @KennyG - Nicely done man. Look at all those "wasted" tanks you could be keeping fish in :blink1:

    Last edited by a moderator: Oct 2, 2016
  20. KennyG

    KennyG

    Joined:
    Jul 23, 2012
    Messages:
    762
    Likes Received:
    6
    Location:
    Centurion
    haha theres 30 fish outside ;) just i dont think my cuter smaller fish would like it outside :p but i really should look at some tank busters for there... :D just its a very bland tank outside3 since its more for use than prettyness

  21. Hawk

    Hawk Clown Fish :-)

    Joined:
    May 25, 2012
    Messages:
    5,147
    Likes Received:
    80
    Location:
    Cape Town
    @KennyG - Being part of a food process I assume you cannot medicate these fish? What fish are they? Oh yes, forgot to add - What type of tomatoes are you growing and does it provide enough for the family?

    Last edited: Sep 26, 2012
